Negative Pressure Fan
Created with Pixso.

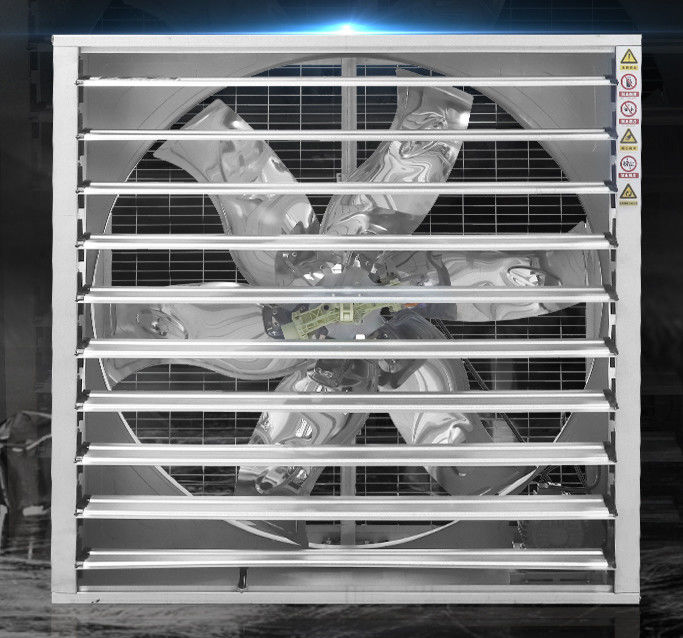

High Speed Rotor Negative Pressure Exhaust Fan Low Noise 370W 380V

High Speed Rotor Negative Pressure Exhaust Fan Low Noise 370W 380V

High Speed Rotor Negative Pressure Exhaust Fan Low Noise 370W 380V

Brand Name: Dahanfeng
Model Number: DHF-1-PA
MOQ: 50 pcs
Price: US$235/pcs/Factory price
Payment Terms: T/T , D/A, D/P, L/C
Supply Ability: 300~500 pcs in 10 working days
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
3C, CE, RoHs,IS09001,ISO14001,CEP
Input Power:
370 W
Max Airflow:
44500 M³/h
Type:
Exhaust Fan
Material:
Aluminium Alloy
Installation:
Wall Or Ceiling Hanging
Fan Blade Diameter:
127 Cm
Power Supply:
380 V/50 Hz
Fan Blade Diameter:
111 Cm
Thickness Of Galvanized Frame:
0.8 Mm

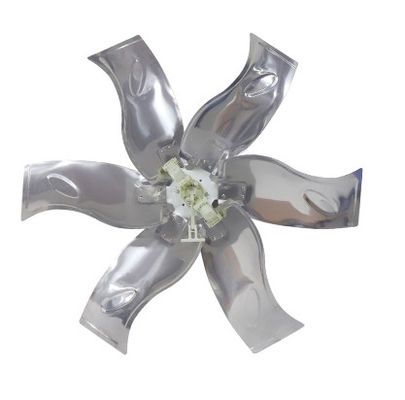

Thickness Of Fan Blade:
2 Mm
Fan Speed:
445 R.p.m
Unit Size:
138*138*45 Cm
Packaging Details:
Stretch membrane wrapping + carton
Highlight:

Negative Pressure Exhaust Fan 370W

,

Negative Pressure Exhaust Fan 380V

,

High Speed Rotor Exhaust Fan

Product Description

High-Speed Rotor Negative Pressure Fan For Low Noise And Stable Performance



Advantages:

  • Belt-driven fans often offer more power and airflow capacity compared to some direct-drive models. This makes them suitable for applications that require high-performance ventilation, such as industrial settings, commercial kitchens, and large warehouses.

  • High Speed Rotor Negative Pressure Exhaust Fan Low Noise 370W 380V 0

  • The ability to adjust the belt tension and speed allows for customization of the fan's performance, enabling it to adapt to different ventilation requirements and operating conditions.

  • Belt-driven exhaust fans may be slightly more complex in design compared to direct-drive fans, which could potentially increase the risk of mechanical failures. However, with proper installation and maintenance, these fans can provide reliable and long-lasting ventilation.







High Speed Rotor Negative Pressure Exhaust Fan Low Noise 370W 380V 1
