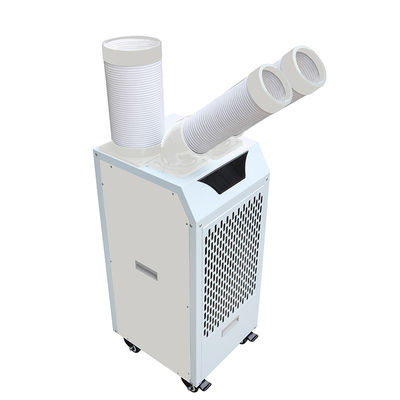

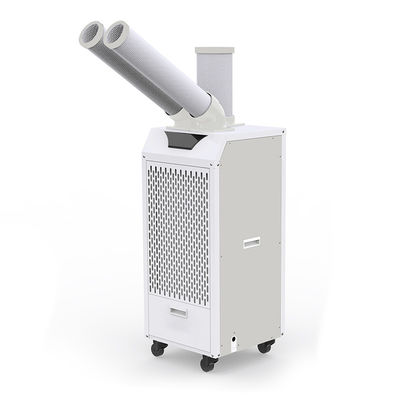

R22 Mobile Portable Air Cooler With 10-12 Degrees Lower Air Outlet Temperature

Brand Name:	Dahanfeng
Model Number:	DHF-A-35B1
MOQ:	30 sets
Price:	US$420/set/Factory price
Payment Terms:	T/T , D/A, D/P, L/C
Supply Ability:	350~500 sets in 15~20 working days

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

3C, CE, RoHs,IS09001,ISO14001,CEP

Power Supply:

220 V/50 Hz

Nominal Cooling Power:

3.5 KW

Rated Power:

1200 W

Current:

5.5 A

Water Tank:

6 Liters

Refrigerant:

R22/R410a

Adaptable Ambient Temperature:

15°C~43°C

Drain By Water Pump:

None

Switch Valve:

None

Weight Of Equipment:

65 KG

Dimension Of Equipment:

460*465*1065 Mm

Operating Mode:

Touch Panel

Cooling Air Flow:

550 M³/h

Packaging Details:

Carton + wooden frame(option)

Highlight:

R22 Portable Air Cooler

12 Degrees Portable Air Cooler

R22 Mobile Portable Air Cooler

Product Description

10-12 Degrees Lower Air Outlet Temperature With Mobile Air Cooler

Using of a refrigerant in a mobile air cooler allows for the transfer of heat from the air to the refrigerant and then the release of that heat to the outside, resulting in the cooling of the air.

R22 Mobile Portable Air Cooler With 10-12 Degrees Lower Air Outlet Temperature 0

Evaporation: The refrigerant in the mobile air cooler is in a liquid state at low pressure. When it passes through an evaporator, it absorbs heat from the surrounding air due to its low boiling point. As a result, the refrigerant changes from a liquid to a gas.
Compression: then compressed by a compressor. The compressor increases the pressure of the refrigerant gas, which also increases its temperature. This step is necessary to prepare the refrigerant for the next stage of the cooling process.
Condensation: The high-pressure and high-temperature refrigerant gas then enters a condenser. In the condenser, the refrigerant releases the heat it absorbed earlier to the outside environment (such as the surrounding air or a cooling medium like water). As the refrigerant releases heat, it condenses back into a liquid state.
Expansion: The condensed liquid refrigerant then passes through an expansion valve. The expansion valve reduces the pressure of the refrigerant, allowing it to enter the evaporator again at a lower pressure and start the cycle anew. This continuous cycle of evaporation, compression, condensation, and expansion enables the mobile air cooler to continuously provide cooled air.
