Mobile Portable Air Cooler 10-12 Degrees Lower Air Outlet Temperature

Brand Name:	Dahanfeng
Model Number:	DHF-A-3PYQ1
MOQ:	30 sets
Price:	US$850/set/Factory price
Payment Terms:	T/T , D/A, D/P, L/C
Supply Ability:	350~500 sets in 10~15 working days

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

3C, CE, RoHs,IS09001,ISO14001,CEP

Power:

220 V~1N/50 Hz

Type:

Jet Propelled

Noise:

≤ 60 DB

Nominal Cooling Power:

6.5 KW

Rated Cooling Power:

2.41 KW

Max Running Power:

3.15 KW

Max Running Current:

14.5 A

Adaptable Ambient Temperature:

15°C~43°C

Circulating Air Flow:

1500 M³/h

Type Of Compressor:

Hermetic Rotor

Refrigerant:

R410a

Condensate Pipe:

DN25

Dimension:

647*450*1696 Mm

Weight Of Equipment:

68 KG

Packaging Details:

Carton + wooden frame(option)

Highlight:

Mobile Portable Air Cooler

12 Degrees Portable Air Cooler

Mobile Ac Portable Cooler

Product Description

10-12 Degrees Lower Air Outlet Temperature Mobile Air Cooler

A mobile air cooler uses a refrigerant, its working principles:

Condensation: The high-pressure and high-temperature refrigerant gas then enters a condenser. In the condenser, the refrigerant releases the heat it absorbed earlier to the outside environment (such as the surrounding air or a cooling medium like water). As the refrigerant releases heat, it condenses back into a liquid state.
Expansion: The condensed liquid refrigerant then passes through an expansion valve. The expansion valve reduces the pressure of the refrigerant, allowing it to enter the evaporator again at a lower pressure and start the cycle anew. This continuous cycle of evaporation, compression, condensation, and expansion enables the mobile air cooler to continuously provide cooled air.

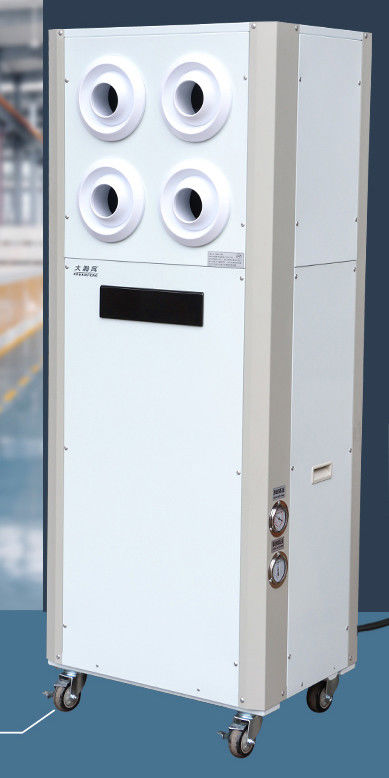

Mobile Portable Air Cooler 10-12 Degrees Lower Air Outlet Temperature 0

In summary, the use of a refrigerant in a mobile air cooler allows for the transfer of heat from the air to the refrigerant and then the release of that heat to the outside, resulting in the cooling of the air.

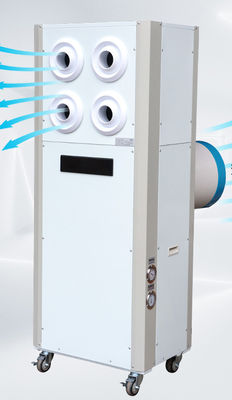

Mobile Portable Air Cooler 10-12 Degrees Lower Air Outlet Temperature 1
