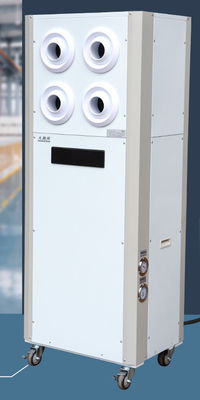

Industrial Cooling Solution Mobile Air Cooler 6500W With Small Footprint

Brand Name:	Dahanfeng
Model Number:	DHF-A-3PYQ2
MOQ:	30 sets
Price:	US$850/set/Factory price
Payment Terms:	T/T , D/A, D/P, L/C
Supply Ability:	350~500 sets in 10~15 working days

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

3C, CE, RoHs,IS09001,ISO14001,CEP

Power:

220 V~1N/50 Hz

Type:

Jet Propelled

Noise:

≤ 60 DB

Nominal Cooling Power:

6.5 KW

Rated Cooling Power:

2.41 KW

Max Running Power:

3.15 KW

Max Running Current:

14.5 A

Adaptable Ambient Temperature:

15°C~43°C

Circulating Air Flow:

1500 M³/h

Type Of Compressor:

Hermetic Rotor

Refrigerant:

R410a

Condensate Pipe:

DN25

Dimension:

647*450*1696 Mm

Weight Of Equipment:

68 KG

Packaging Details:

Carton

Highlight:

Industrial Mobile Air Cooler

Small Footprint Mobile Air Cooler

Mobile Air Cooler 6500W

Product Description

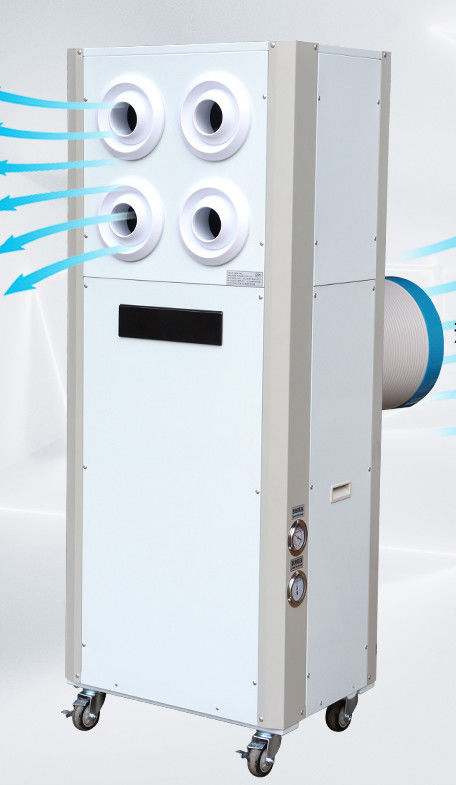

Industrial Cooling Solution Mobile Air Cooler With Small Footprint

A mobile air cooler uses a refrigerant, its working principle is similar to that of a basic refrigeration system:

1.Evaporation: The refrigerant in the mobile air cooler is in a liquid state at low pressure. When it passes through an evaporator, it absorbs heat from the surrounding air due to its low boiling point. As a result, the refrigerant changes from a liquid to a gas, and the temperature of the surrounding air drops. This is the main process that achieves cooling. The evaporator is typically in contact with the air that needs to be cooled, allowing the heat transfer to occur.

Industrial Cooling Solution Mobile Air Cooler 6500W With Small Footprint 0

2.Compression: After the refrigerant evaporates and becomes a gas, it is then compressed by a compressor. The compressor increases the pressure of the refrigerant gas, which also increases its temperature. This step is necessary to prepare the refrigerant for the next stage of the cooling process.
