products details

Home Products

10~12 °C Lower Air Outlet Mobile Air Cooler For Construction Sites And Workspot

Brand Name:	Dahanfeng
Model Number:	DHF-A-3P2
MOQ:	30 sets
Price:	US$850/set/Factory price
Payment Terms:	T/T , D/A, D/P, L/C
Supply Ability:	350~500 sets in 10~15 working days

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

3C, CE, RoHs,IS09001,ISO14001,CEP

Power:

220 V~1N/50 Hz

Type:

Louvre Type

Noise:

≤ 58 DB

Nominal Cooling Power:

6.5 KW

Rated Cooling Power:

2.41 KW

Max Running Power:

3.15 KW

Max Running Current:

14.5 A

Adaptable Ambient Temperature:

15°C~43°C

Circulating Air Flow:

1600 M³/h

Type Of Compressor:

Hermetic Rotor

Refrigerant:

R410a

Condensate Pipe:

DN25

Dimension:

647*450*1696 Mm

Weight Of Equipment:

62 KG

Packaging Details:

Carton

Highlight:

Construction Sites Mobile Air Cooler

Lower Air Outlet Mobile Air Cooler

Workspot Mobile Air Cooler

Product Description

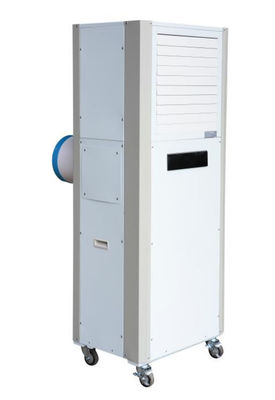

10~12 °C Lower Air Outlet Mobile Air Cooler for Construction Sites and Workspot

A mobile air cooler uses a refrigerant, its working principles:

Condensation: The high-pressure and high-temperature refrigerant gas then enters a condenser. In the condenser, the refrigerant releases the heat it absorbed earlier to the outside environment (such as the surrounding air or a cooling medium like water). As the refrigerant releases heat, it condenses back into a liquid state.
Expansion: The condensed liquid refrigerant then passes through an expansion valve. The expansion valve reduces the pressure of the refrigerant, allowing it to enter the evaporator again at a lower pressure and start the cycle anew. This continuous cycle of evaporation, compression, condensation, and expansion enables the mobile air cooler to continuously provide cooled air.

10~12 °C Lower Air Outlet Mobile Air Cooler For Construction Sites And Workspot 0

3. In summary, the use of a refrigerant in a mobile air cooler allows for the transfer of heat from the air to the refrigerant and then the release of that heat to the outside, resulting in the cooling of the air.

10~12 °C Lower Air Outlet Mobile Air Cooler For Construction Sites And Workspot 1

4. Compact and Portable Design

Mobile air coolers are designed to be easily movable from one place to another. They have a relatively small footprint and are often equipped with wheels and handles. This means you can move it around your home, office, or even take it to a different location like a camper van. Their compact size also makes them convenient to store when not in use. For instance, you can store it in a closet or a corner of the room without taking up too much space.
