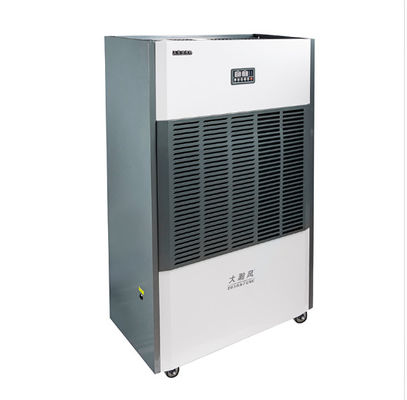

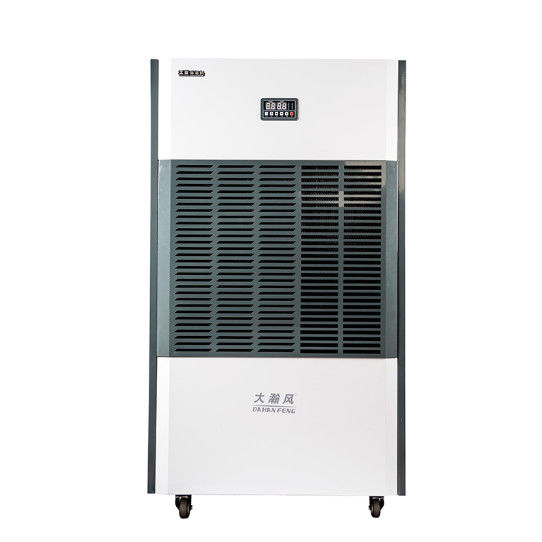

Automatic Defrosting Industrial Air Dehumidifier For Removing Excess Moisture

Brand Name:	Dahanfeng
Model Number:	DHF-D-40IH
MOQ:	30 pcs
Price:	US$2850/pcs/Factory price
Payment Terms:	T/T , D/A, D/P, L/C
Supply Ability:	300~500 pcs in 10 working days

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

3C, CE, RoHs,IS09001,ISO14001,CEP

Nominal Moisture Removal:

22.5 L/h (27°C ~60% RH)

Moisture Removal(H):

40 L/h (30°C ~80% RH)

Max Moisture Removal:

46 L/h (35°C ~ 90% RH)

Power Supply:

380 V ~3N/50 Hz

Rated Power:

15 KW

High Temperature Power:

20 KW

Max Input Power:

30 KW

Working Temperature:

5°C ~ 38°C

Noise:

≤ 72 DB

Max Working Pressure On Exhaust/suction Side:

4.4/1.5 MPa

Max Working Pressure On High Temperature Side:

4.4 MPa

Max Allowable Pressure For Heat Exchanges:

4.4 MPa

Water Tank:

None/drain Pipe

Refrigerant/Use:

R410a/4800 G

Levels Of Waterproof:

IP21

Type Of Protection Against Electric Shocks:

Class I

Circulating Air Flow:

4600 M³/h

Size:

137.8*78*187 Cm

Packaging Details:

carton

Highlight:

Automatic Defrosting Industrial Air Dehumidifier

Removing Moisture Industrial Air Dehumidifier

Industrial Auto Defrost Dehumidifier

Product Description

Industrial Dehumidifier for Efficiently Removing Excess Moisture in the Air

The working principle of a dehumidifier involves several key processes:

Condensation

The dehumidifier draws in moist air from the surrounding environment. This air passes over a cold evaporator coil. As the warm, moist air comes into contact with the cold coil, the moisture in the air condenses into water droplets. This is similar to how water droplets form on the outside of a cold glass on a hot day.

Collection

The condensed water droplets collect on the surface of the evaporator coil and then drip down into a collection tray or tank. Some dehumidifiers have a continuous drainage option where the water can be piped away directly.

Automatic Defrosting Industrial Air Dehumidifier For Removing Excess Moisture 0

Drying and Circulation

The now drier air is then passed over a warm condenser coil. This warms the air back up before it is released back into the room. This process not only dries the air but also helps to maintain a comfortable temperature in the space.

Automatic Defrosting Industrial Air Dehumidifier For Removing Excess Moisture 1

Automatic Defrosting Industrial Air Dehumidifier For Removing Excess Moisture 2
