380V/50Hz Industrial Dehumidifier For 30%-90% Humidity Control

Brand Name:	Dahanfeng
Model Number:	DHF-D-12IH1
MOQ:	50 pcs
Price:	US$1750/pcs/Factory price
Payment Terms:	T/T , D/A, D/P, L/C
Supply Ability:	300~500 pcs in 10 working days

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

3C, CE, RoHs,IS09001,ISO14001,CEP

Nominal Moisture Removal:

6.5 L/h (27°C ~60% RH)

Moisture Removal(H):

12 L/h (30°C ~80% RH)

Max Moisture Removal:

15 L/h (35°C ~ 90% RH)

Power Supply:

380 V ~3N/50 Hz

Rated Power:

3200 W

High Temperature Power:

4000 W

Max Input Power:

5000 W

Working Temperature:

5°C ~ 38°C

Noise:

≤ 65 DB

Max Working Pressure On Exhaust/suction Side:

4.4/1.5 MPa

Max Working Pressure On High Temperature Side:

4.4 MPa

Max Allowable Pressure For Heat Exchanges:

4.4 MPa

Water Tank:

None/drain Pipe

Refrigerant/Use:

R410a/1900 G

Levels Of Waterproof:

IP21

Type Of Protection Against Electric Shocks:

Class I

Circulating Air Flow:

2000 M³/h

Size:

68*47.2*169.6 Cm

Packaging Details:

carton

Highlight:

50Hz Industrial Dehumidifier

90% Humidity Control Industrial Dehumidifier

380V Industrial Dehumidifier

Product Description

Industrial Dehumidifier For Reducing Humidity And Improving Air Circulation

A dehumidifier is a device designed to reduce the level of humidity in the air:

Function and Purpose

Removes moisture
Prevents mold and mildew
Protects property

Types

Whole-house dehumidifiers: These are larger units that are connected to the home's HVAC system and can dehumidify the entire house. They are more powerful and can handle larger volumes of air.

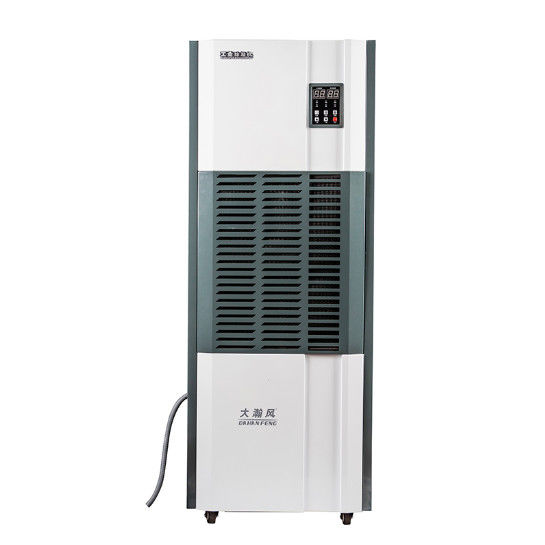

380V/50Hz Industrial Dehumidifier For 30%-90% Humidity Control 0

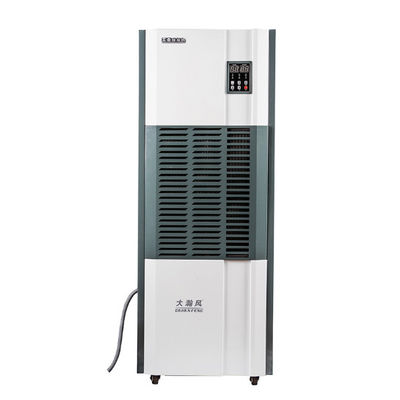

380V/50Hz Industrial Dehumidifier For 30%-90% Humidity Control 1

Components

Compressor: The heart of the dehumidifier, the compressor compresses the refrigerant gas and circulates it through the cooling coils.
Evaporator coil: As the humid air passes over the evaporator coil, it cools down and moisture condenses on the coil.
Condenser coil: The refrigerant gas releases heat as it passes through the condenser coil, reheating the air and preparing it to be released back into the room.
Fan: The fan circulates the air through the dehumidifier, ensuring efficient moisture removal.
Reservoir or drain: The collected moisture is either stored in a reservoir or drained away through a hose.
