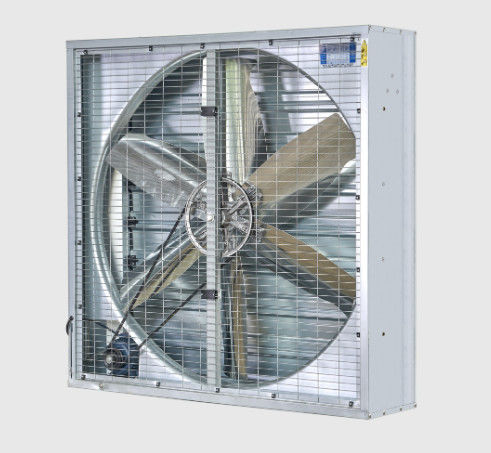

Direct Drive Negative Pressure Fan 540rpm With Huge Wind

Brand Name:	Dahanfeng
Model Number:	DHF-4B
MOQ:	50 pcs
Price:	US$150/pcs/Factory price
Payment Terms:	T/T , D/A, D/P, L/C
Supply Ability:	300~500 pcs in 10 working days

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

3C, CE, RoHs,IS09001,ISO14001,CEP

Features:

Low Cost, Durable

Circulating Air Flow:

28000 M³/h

Input Power:

370 W

Material:

Aluminium Alloy

Voltage:

380 V/50 Hz

Fan Speed:

540 (r.p.m)

Fan Blade Diameter:

79 Cm

Thickness Of Galvanize Frame:

0.8 Mm

Thickness Of Fan Blade:

2 Mm

Unit External Size:

90*90*35 Cm

Packaging Details:

Stretch membrane wrapping + carton(option)

Highlight:

Direct Drive Fan 540rpm

540rpm Negative Pressure Fan

Aluminium Alloy Negative Pressure Fan

Product Description

Less Investment And Low Energy Consumption With Direct-Drive Negative Pressure Fan

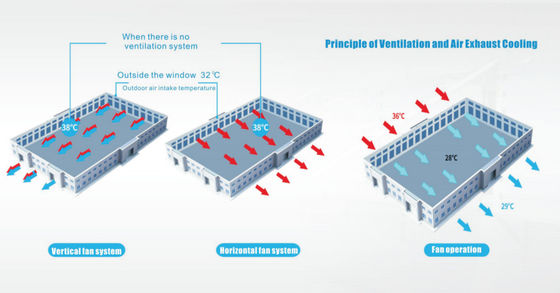

Ventilation and cooling principle:

In terms of design, negative pressure fans are usually made of durable materials to withstand harsh environments. They often have a large impeller and a powerful motor to ensure strong air extraction capabilities. Some models may also come with adjustable speed settings to meet different ventilation needs.

1) less investment, low energy consumption. The same refrigeration rate, a one-time investment of about one-sixth of the air conditioning, operating costs of about one-tenth of the air conditioning;
2) cooling effect is remarkable, the temperature can be reduced to about 28 degrees, consistent with the human body temperature, if the water with the water wells as a source of water tanks better, can be compared to the effect of air conditioning;
3) air is fresh and moist, air cleanliness up to 99 per cent.

Direct Drive Negative Pressure Fan 540rpm With Huge Wind 0

Features:

e.Aluminium fan blade with one-time stamping and shaping, strong and tough, saving electricity.
f.High-quality belt, wear-resistant and anti-aging
g.Built-in heavy hammer Automatic switch off automatic switch on automatic switch on Power failure can also open ventilation
h.High density galvanised mesh, not easy to rust, safe and easy to use.
i.High-quality bearings, low noise, faster speed

Direct Drive Negative Pressure Fan 540rpm With Huge Wind 1
