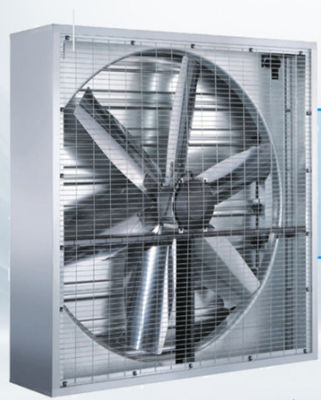

U Shaped Fan Blade Direct Drive Negative Pressure Fan System Longitudinal

Brand Name:	Dahanfeng
Model Number:	DHF-1380Z1
MOQ:	80 pcs
Price:	US$240/pcs/Factory price
Payment Terms:	T/T , D/A, D/P, L/C
Supply Ability:	300~500 pcs in 10 working days

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

3C, CE, RoHs,IS09001,ISO14001,CEP

Max Air Flow:

44500 M³/h

Voltage/Frequency:

380 V/50 Hz

Input Power:

1.1 KW

Fan Blade Material:

Aluminium Alloy

Application:

Ventilation And Cooling

Fan Speed:

445 R.p.m

Fan Blade Diameter:

127 Cm

Installation:

Wall And Ceiling Hanging

Thickness Of Fan Blade:

2 Mm

Unit External Size:

138*138*40 Cm

Packaging Details:

Stretch membrane wrapping + carton(option)

Highlight:

U Shaped Blade Negative Pressure Fan

Longitudinal Direct Drive Fan

Longitudinal Negative Pressure Fan System

Product Description

U-Shaped Fan Blade For Direct-Drive Negative Pressure Fan System And Longitudinal Fan System

A direct-drive negative pressure fan is a powerful and efficient ventilation device with several notable characteristics.

Design and Construction

This type of fan typically has a sturdy and durable housing made of materials such as metal or high-quality plastic. The direct-drive mechanism means that the motor is directly connected to the fan impeller, eliminating the need for belts or pulleys. This design results in a more compact and reliable unit.

The fan blades are carefully engineered to optimize air movement. They are often designed with aerodynamic shapes to maximize airflow while minimizing noise and energy consumption.

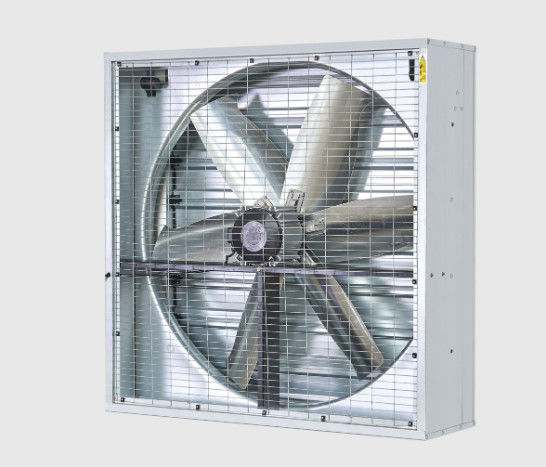

U Shaped Fan Blade Direct Drive Negative Pressure Fan System Longitudinal 0

Functionality

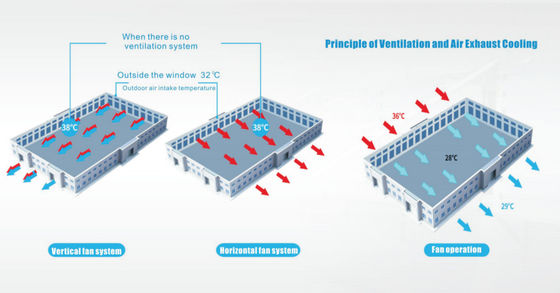

The main function of a direct-drive negative pressure fan is to create a negative pressure environment. By exhausting air from a space, it draws in fresh air from other openings, promoting air circulation and ventilation. This is particularly useful in industrial settings, warehouses, livestock farms, and other areas where good ventilation is essential.

The negative pressure created by the fan helps to remove stale air, heat, humidity, dust, and odors. It can also help to control temperature and humidity levels, improving the overall working or living environment.

U Shaped Fan Blade Direct Drive Negative Pressure Fan System Longitudinal 1
