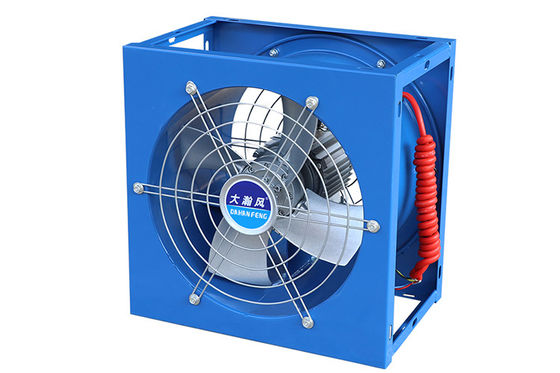

High Humidity High Temperature Axial Fan Ventilator For Drying And Air Circulation

Brand Name:	Dahanfeng
Model Number:	GSF-4#G
MOQ:	200 pcs
Price:	US$85/pcs/Factory price
Payment Terms:	T/T , D/A, D/P, L/C
Supply Ability:	300~500 pcs in 10 working days

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

3C, CE, RoHs,IS09001,ISO14001,CEP

Voltage/Frequency:

380 V/50 Hz

Input Power:

1.1 KW

Application:

High Temperature Environments Such As Industrial Furnaces, Ovens, And Kilns

Material:

Curved Blade Die-cast Aluminium Alloy

Mounting Type:

Wall/ceiling Mounted

Max Air Flow:

5000~7500 M³/h

Size:

Various Sizes Available

Velocity Of Fan:

2900 Rpm

Inner Diameter Of Fan Blade:

410 Mm(D1)

Noise:

75 DB

Diameter Of Hole:

435 Mm(D2)

Out Diameter Of Fan Blade:

470 Mm(D3)

Pressure Range:

270~380 Pa

Quantity Of Fan Blade:

6 Pcs

Packaging Details:

Stretch membrane wrapping + carton(option)

Highlight:

High Temperature Axial Fan Ventilator

Air Circulation Axial Fan Ventilator

Drying Axial Fan Ventilator

Product Description

High Temperature And High Humidity Axial Flow Ventilator For Drying And Air Circulation

A high temperature axial fan is a specialized type of axial flow fan designed to operate in high-temperature environments:

Construction and Components:
- Blades: The fan blades are typically made of high-temperature-resistant materials, such as special alloys or heat-resistant plastics. These materials can withstand high temperatures without deforming or losing their mechanical properties, ensuring the fan's efficient operation at elevated temperatures. The shape and design of the blades are optimized to provide maximum airflow while minimizing energy consumption and noise.
- Motor: It is equipped with a high-temperature-resistant motor that can endure the heat generated in the working environment. The motor is often designed with special insulation and cooling systems to prevent overheating. Some high-temperature axial fans may also have a separate cooling mechanism, such as an air cooling or water cooling system, to ensure the stable operation of the motor.

High Humidity High Temperature Axial Fan Ventilator For Drying And Air Circulation 0

2. Working Principle: Similar to a regular axial flow fan, a high temperature axial fan operates by converting the rotational energy of the motor into the kinetic energy of the air. When the motor drives the fan blades to rotate, the blades push the air in an axial direction, creating a continuous flow of air. This axial flow of air is beneficial in high-temperature environments where the rapid removal or circulation of hot air is required.
