High Temperature Axial Fan
Created with Pixso.

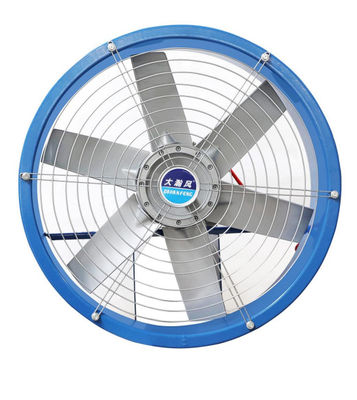

IP55 High Temperature Axial Fan For Wood Materials Drying And Ventilation

IP55 High Temperature Axial Fan For Wood Materials Drying And Ventilation

IP55 High Temperature Axial Fan For Wood Materials Drying And Ventilation

Brand Name: Dahanfeng
Model Number: GSF-4#B
MOQ: 200 pcs
Price: US$75/pcs/Factory price
Payment Terms: T/T , D/A, D/P, L/C
Supply Ability: 300~500 pcs in 10 working days
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
3C, CE, RoHs,IS09001,ISO14001,CEP
Material:
Stainless Steel And Aluminum Alloy
Rotation Speed:
2900 Rpm
Protection Grade:
IP55
Power Supply:
380 V/50 Hz
Input Power:
1.1 KW
Air Flow Range:
5000~7500 M³/h
Pressure:
270~380 Pa
Quantity Of Fan Blade:
6 Pcs
Inner Diameter Of Fan Blade:
710 Mm(D1)
Noise:
75 DB
Diameter Of Hole:
670 Mm(D2)
Out Diameter Of Fan Blade:
770 Mm(D3)
Packaging Details:
Stretch membrane wrapping
Highlight:

IP55 High Temperature Axial Fan

,

Wood Materials Drying Axial Fan

,

Ventilation High Temperature Axial Fan

Product Description

Large Air Volume High Temperature Fan For Wood And Other Materials Drying And Ventilation



A high temperature axial fan is a specialized type of axial flow fan designed to operate in high-temperature environments:



  1. 1.Construction and Components:

    • Blades: The fan blades are typically made of high-temperature-resistant materials, such as special alloys. These materials can withstand high temperatures without deforming or losing their mechanical properties, ensuring the fan's efficient operation at elevated temperatures. The shape and design of the blades are optimized to provide maximum airflow while minimizing energy consumption and noise.

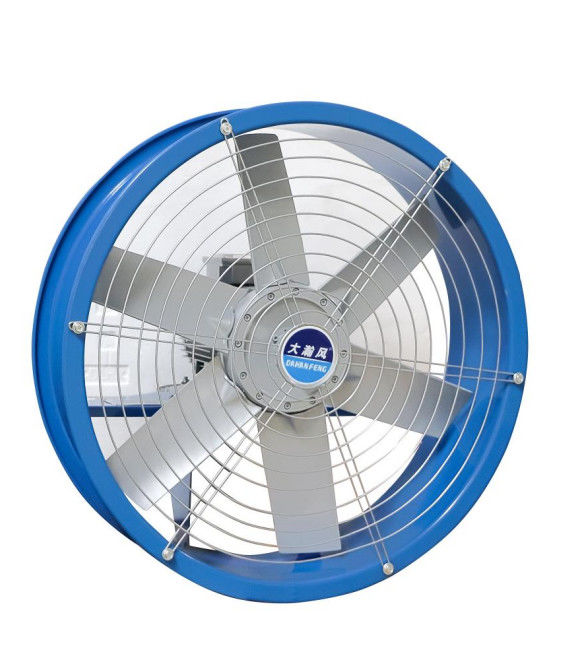

IP55 High Temperature Axial Fan For Wood Materials Drying And Ventilation 0

  1. 2.Working Principle: Similar to a regular axial flow fan, a high temperature axial fan operates by converting the rotational energy of the motor into the kinetic energy of the air. When the motor drives the fan blades to rotate, the blades push the air in an axial direction, creating a continuous flow of air. This axial flow of air is beneficial in high-temperature environments where the rapid removal or circulation of hot air is required.
