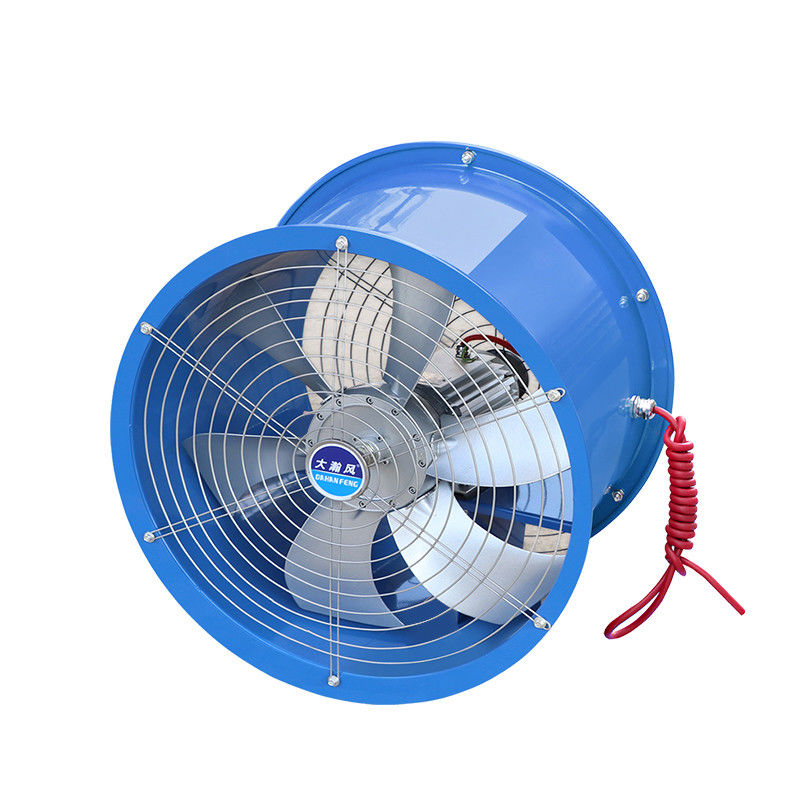

High Temperature Axial Flow Ventilator 380V/50Hz For Wood Drying Kiln

Brand Name:	Dahanfeng
Model Number:	GSF-7#G
MOQ:	300 pcs
Price:	US$172/pcs/Factory price
Payment Terms:	T/T , D/A, D/P, L/C
Supply Ability:	300~500 pcs in 10 working days

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

3C, CE, RoHs,IS09001,ISO14001,CEP

Max Air Range:

13000~20500 M³/h

Mounting Type:

Wall Or Ceiling Hanging

Fan Blade Diameter:

670 Mm

Input Power:

2.2 KW

Frequency/Voltage:

380 V/50 Hz

Material:

Curved Blade Die-cast Aluminum Alloy

Blade Type:

Axial

Speed:

1450 Rpm

Inner Diameter Of Fan Blade:

710 Mm(D1)

Noise:

80 DB

Installation Size:

71*300mm(H*L) 6*7mm(n-d1)

Out Diameter Of Fan Blade:

770 Mm(D3)

Pressure Range:

200~275 Pa

Quantity Of Fan Blade:

6 Pcs

Packaging Details:

Stretch membrane wrapping + carton

Highlight:

Wood Drying Kiln Axial Flow Ventilator

Kiln Axial Flow Exhaust Fan

Axial Flow Ventilator 380V

Product Description

High Temperature And Easy Maintenance Axial Flow Ventilator For Wood Drying Kiln

Working Principle: Similar to a regular axial flow fan, a high temperature axial fan operates by converting the rotational energy of the motor into the kinetic energy of the air. When the motor drives the fan blades to rotate, the blades push the air in an axial direction, creating a continuous flow of air. This axial flow of air is beneficial in high-temperature environments where the rapid removal or circulation of hot air is required.

High Temperature Axial Flow Ventilator 380V/50Hz For Wood Drying Kiln 0

Features:

1.High temperature resistant
2.Powerful
3.Stable wind pressure
4.Easy maintenance
