Stainless Steel Industrial Dehumidifier 380 V~3N/50 Hz with Auto drainage pipe

Brand Name:	Dahanfeng
Model Number:	DHF-D-20IH
MOQ:	30 pcs
Price:	US$2150/pcs/Factory price
Payment Terms:	T/T , D/A, D/P, L/C
Supply Ability:	300~500 pcs in 10 working days

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

3C, CE, RoHs,IS09001,ISO14001,CEP

Nominal Moisture Removal:

13 L/H (27°C ~ 60% RH)

Moisture Removal In High Temperature:

20 L/H (30°C ~ 80% RH)

Max Moisture Removal:

25 L/H (35°C ~90% RH)

Rated Power:

5.3 KW

High Temperature Power:

6.65 KW

Max Operating Power:

8.35 KW

Working Temperature:

5 ~ 38 C°

Refrigerant/Use:

R410a/3800 G

Applicable Area:

600 ~ 800 ㎡

Rated Current:

11.8 A

Circulating Air Flow:

3600 M³/h

Noise:

≤ 68 DB

Max Working Pressure On Exhaust/suction Side:

4.4/1.5 MPa

Max Working Pressure On High Pressure Side:

4.4 MPa

Max Allowable Pressure For Heat Exchanges:

4.4 MPa

Level Of Waterproof:

IP21

Type Of Protection Against Electric Shock:

Class I

Power Supply:

380 V ~3N/50 Hz

Packaging Details:

carton

Highlight:

Industrial Dehumidifier 220V

Stainless Steel Industrial Dehumidifier

Washable Filter Industrial Dehumidifier

Product Description

Optimal Dehumidifying With Industrial Dehumidifier'S Internal And External Circulation

The working principle of a dehumidifier:

Condensation

The dehumidifier draws in moist air from the surrounding environment. This air passes over a cold evaporator coil. As the warm, moist air comes into contact with the cold coil, the moisture in the air condenses into water droplets. This is similar to how water droplets form on the outside of a cold glass on a hot day.

Collection

The condensed water droplets collect on the surface of the evaporator coil and then drip down into a collection tray or tank. Some dehumidifiers have a continuous drainage option where the water can be piped away directly.

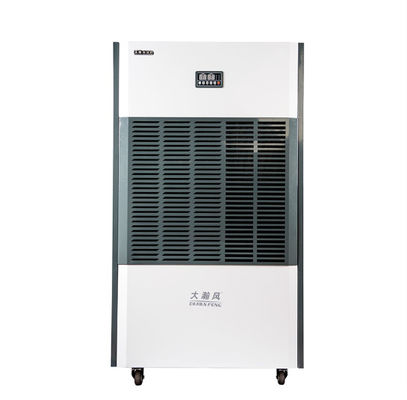

Stainless Steel Industrial Dehumidifier 380 V~3N/50 Hz with Auto drainage pipe 0

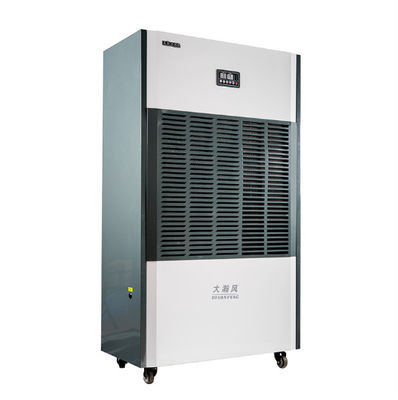

Stainless Steel Industrial Dehumidifier 380 V~3N/50 Hz with Auto drainage pipe 1

Drying and Circulation

The now drier air is then passed over a warm condenser coil. This warms the air back up before it is released back into the room. This process not only dries the air but also helps to maintain a comfortable temperature in the space.

Fan and Air Movement

A fan within the dehumidifier is responsible for drawing in the moist air and pushing out the dried air. The fan helps to create air circulation, ensuring that the dehumidifier can effectively process a large volume of air and maintain a consistent level of humidity reduction throughout the room.

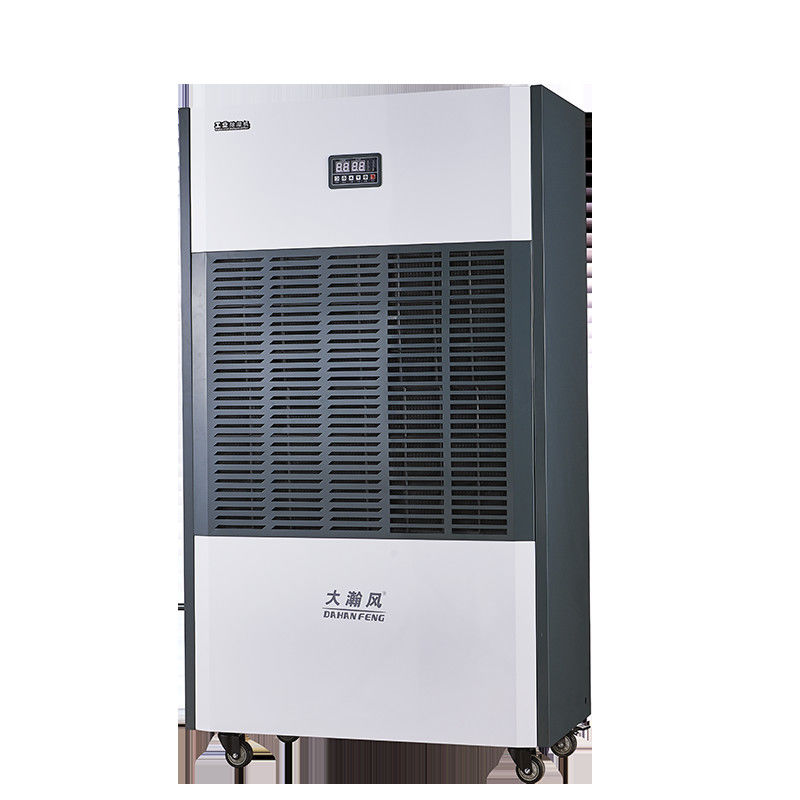

Stainless Steel Industrial Dehumidifier 380 V~3N/50 Hz with Auto drainage pipe 2
