R410a Refrigerant Dehumidifier Reducing Saturated Water Content In The Air

Brand Name:	Dahanfeng
Model Number:	DHF-D-15IH3
MOQ:	50 pcs
Price:	US$1950/pcs/Factory price
Payment Terms:	T/T , D/A, D/P, L/C
Supply Ability:	300~500 pcs in 10 working days

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

3C, CE, RoHs,IS09001,ISO14001,CEP

Nominal Moisture Removal:

9.7 L/h (27°C ~ 60% RH)

Moisture Removal(H):

15 L/h (30°C ~80% RH)

Max Moisture Removal:

20 L/h (35°C ~90% RH)

Power Supply:

380 V ~3N/50 Hz

Rated Power:

4.45 KW

High Temperature Power:

5.4 KW

Max Input Power:

6.6 KW

Working Temperature:

5°C ~ 38°C

Circulating Air Flow:

3050 M³/h

Noise:

≤ 68 DB

Water Tank:

None/drain Pipe

Max Working Pressure On Exhaust/suction Side:

4.4/1.5 MPa

Max Working Pressure On High Pressure Side:

4.4 MPa

Max Allowable Pressure For Heat Exchanges:

4.4 MPa

Refrigerant/Use:

R410a/2700 G

Type Of Waterproof:

IP21

Type Of Protection Against Electric Shocks:

Class I

Size:

102.8*52.4*177.2 Cm

Packaging Details:

carton

Highlight:

R22 Refrigerant Dehumidifier

Reducing Saturated Water Refrigerant Dehumidifier

R22 Industrial Refrigerant Dehumidifier

Product Description

Industrial Dehumidifier For Reducing Saturated Water Content In The Air

An industrial dehumidifier is a specialized device with the following characteristics:

Components and Design

Compressor: A key component that compresses the refrigerant, enabling the dehumidification process.
Evaporator and Condenser Coils: The evaporator coil cools the air, causing moisture to condense. The condenser coil then releases the heat extracted during the process.

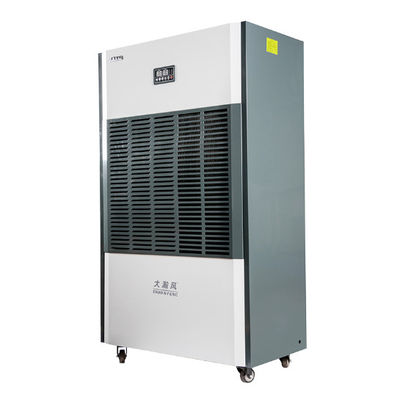

R410a Refrigerant Dehumidifier Reducing Saturated Water Content In The Air 0

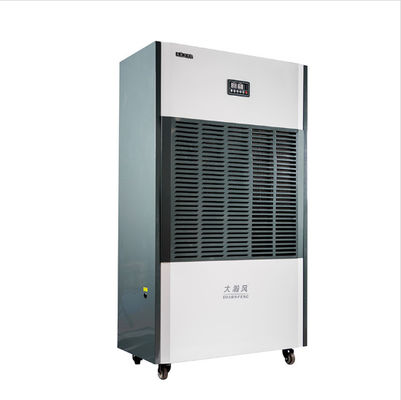

R410a Refrigerant Dehumidifier Reducing Saturated Water Content In The Air 1

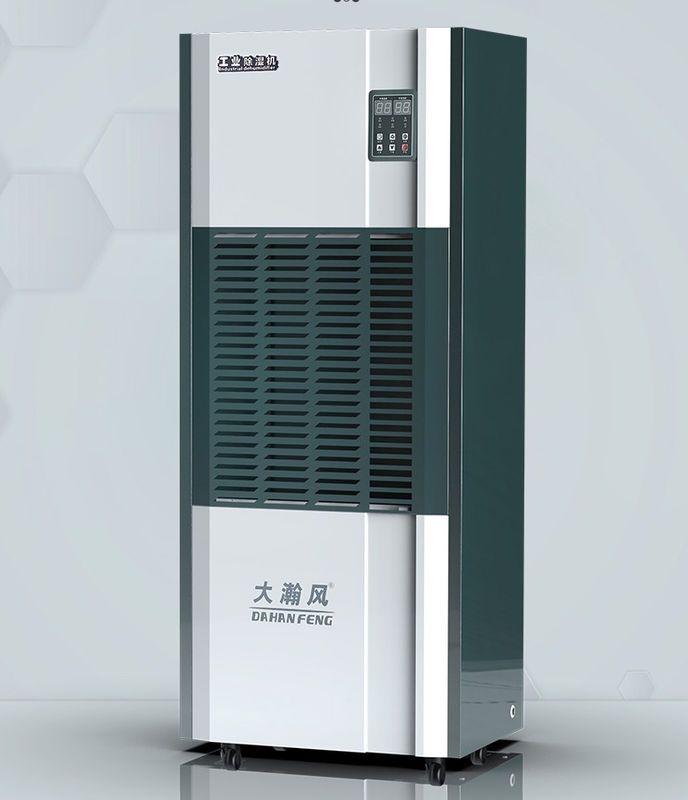

R410a Refrigerant Dehumidifier Reducing Saturated Water Content In The Air 2

Fan System: Circulates the air through the dehumidifier, ensuring efficient moisture removal.
Humidity Sensors: These sensors monitor the humidity level in the surrounding environment and signal the dehumidifier to start or stop based on preset humidity thresholds.

R410a Refrigerant Dehumidifier Reducing Saturated Water Content In The Air 3
