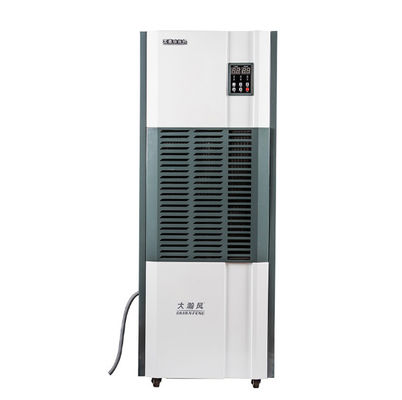

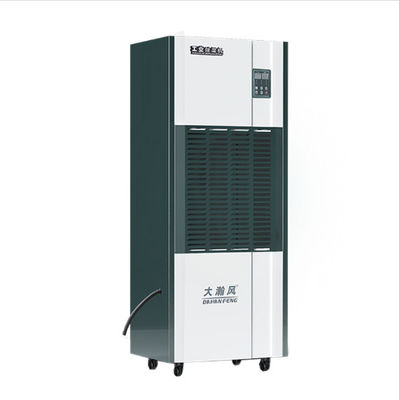

380 V/50 Hz Industrial Desiccant Dehumidifier With 5.8 ~ 13 l/h Capacity

Brand Name:	Dahanfeng
Model Number:	DHF-D-10IH1
MOQ:	50 pcs
Price:	US$1550/pcs/Factory price
Payment Terms:	T/T , D/A, D/P, L/C
Supply Ability:	300~500 pcs in 10 working days

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

3C, CE, RoHs,IS09001,ISO14001,CEP

Nominal Moisture Removal:

5.8 L/h (27°C ~60% RH)

Moisture Removal(H):

10 L/h (30°C ~80% RH)

Max Moisture Removal:

13 L/h (35°C ~ 90% RH)

Power Supply:

380 V ~3N/50 Hz

Rated Power:

2850 W

High Temperature Power:

3350 W

Max Input Power:

4100 W

Working Temperature:

5°C ~ 38°C

Noise:

≤ 68 DB

Max Working Pressure On Exhaust/suction Side:

4.4/1.5 MPa

Max Working Pressure On High Temperature Side:

4.4 MPa

Max Allowable Pressure For Heat Exchanges:

4.4 MPa

Water Tank:

None/drain Pipe

Refrigerant/Use:

R410a/1750 G

Levels Of Waterproof:

IP21

Type Of Protection Against Electric Shocks:

Class I

Circulating Air Flow:

1900 M³/h

Size:

68*47.2*169.6 Cm

Packaging Details:

carton

Highlight:

50Hz Industrial Desiccant Dehumidifier

10 L/H Industrial Desiccant Dehumidifier

380V Industrial Desiccant Dehumidifier

Product Description

Industrial Dehumidifier With Internal And External Circulation For Better Performance

The process of equipment including 2 parts:
1) Internal Circulation
Compressor operation → exhaust discharge of high-temperature and high-pressure gas → gas into the condenser to cool → into a low-temperature and high-pressure gas → through the capillary interception → into a low-temperature and low-pressure liquid → through the evaporator evaporation and heat absorption → back to the compressor into a low-temperature and low-pressure gas. So cycle.

380 V/50 Hz Industrial Desiccant Dehumidifier With 5.8 ~ 13 l/h Capacity 0

380 V/50 Hz Industrial Desiccant Dehumidifier With 5.8 ~ 13 l/h Capacity 1

380 V/50 Hz Industrial Desiccant Dehumidifier With 5.8 ~ 13 l/h Capacity 2

2)external circulation
In the case of normal power on → through the operation of the fan → humid air from the inlet inhalation → through the evaporator → evaporator will be the water in the air adsorption on the aluminium sheet → into dry air → through the condenser heat dissipation → from the outlet blowing out.

380 V/50 Hz Industrial Desiccant Dehumidifier With 5.8 ~ 13 l/h Capacity 3
