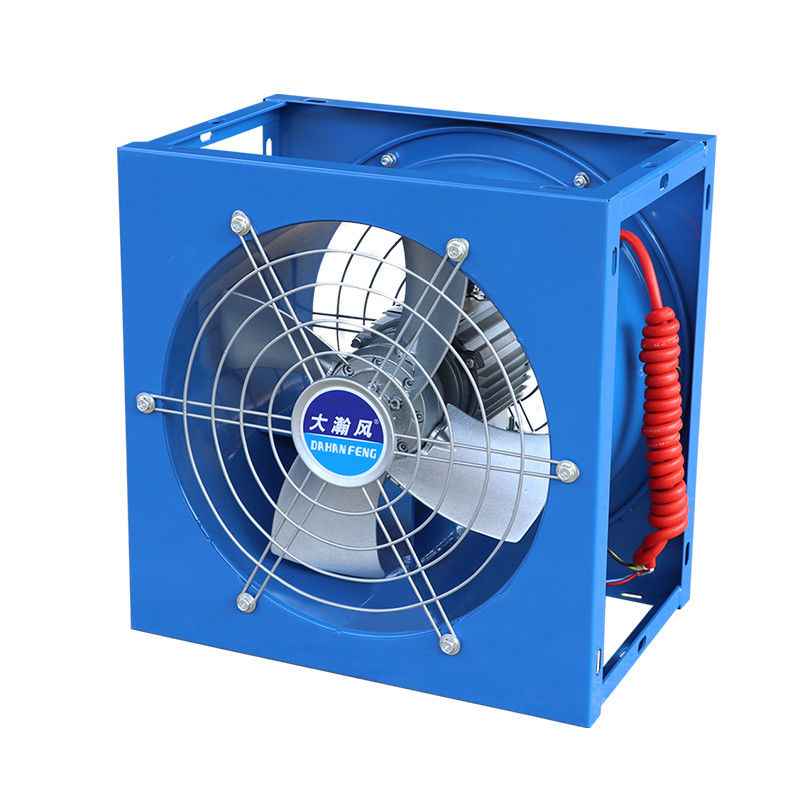

High Temperature Axial Flow Exhaust Fan For Wood Drying And Ventilating System

Brand Name:	Dahanfeng
Model Number:	GSF-8#F
MOQ:	300 pcs
Price:	US$230/pcs/Factory price
Payment Terms:	T/T , D/A, D/P, L/C
Supply Ability:	300~500 pcs in 10 working days

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

3C, CE, RoHs,IS09001,ISO14001,CEP

Features:

High Efficiency, Low Cost, Anti-corrosion

Velocity:

1450 Rpm

Power Supply:

380 V/50 Hz

Max Air Flow:

20000~29000 M³/h

Mounting Type:

Wall Or Ceiling Hanging

Power:

3 KW

Application:

High Temperature Industrial Ventilation And Drying

Material:

Curved Blade Die-cast Aluminium

Inner Diameter Of Fan Blade:

810 Mm(D1)

Noise:

82 DB

Diameter Of Hole:

510 Mm(D2)

Out Diameter Of Fan Blade:

870 Mm(D3)

Pressure Range:

220~340 Pa

Quantity Of Fan Blade:

8 Pcs

Packaging Details:

Stretch membrane wrapping + carton

Highlight:

High Temperature Axial Flow Exhaust Fan

Wood Drying Axial Flow Exhaust Fan

Ventilating System Axial Flow Exhaust Fan

Product Description

Stable Air Pressure High Temperature Axial Fan For Wood Drying And Ventilating System

1. 1.Applications:

Industrial Processes: High temperature axial fans are widely used in various industrial processes, such as in metallurgy, foundries, chemical plants, and baking ovens. They help to remove hot air, fumes, and dust generated during the production process, improving the working environment and ensuring the safety of the production process.
Power Generation: In power plants, these fans are used in boiler systems to assist in the combustion process by providing a sufficient supply of air and to remove the hot gases generated during combustion.
Ventilation in Special Environments: They are also used in tunnels, underground garages, and other confined spaces where high temperatures may occur due to poor ventilation or the presence of heat-generating equipment. The fans help to maintain a proper air circulation and prevent the accumulation of heat and harmful gases

High Temperature Axial Flow Exhaust Fan For Wood Drying And Ventilating System 0

2.Construction:
- Motor: It is equipped with a high-temperature-resistant motor that can endure the heat generated in the working environment. The motor is often designed with special insulation and cooling systems to prevent overheating. Some high-temperature axial fans may also have a separate cooling mechanism, such as an air cooling or water cooling system, to ensure the stable operation of the motor.
- Housing and Frame: The housing and frame of the fan are made of sturdy materials that can provide structural support and protection to the internal components. They are also designed to dissipate heat effectively to prevent the accumulation of heat within the fan.
