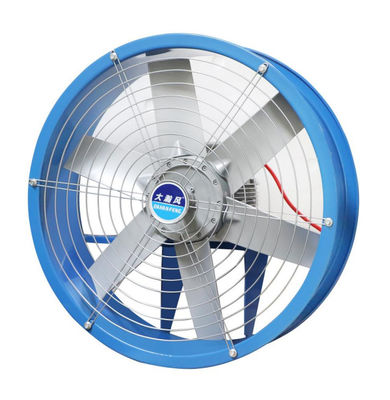

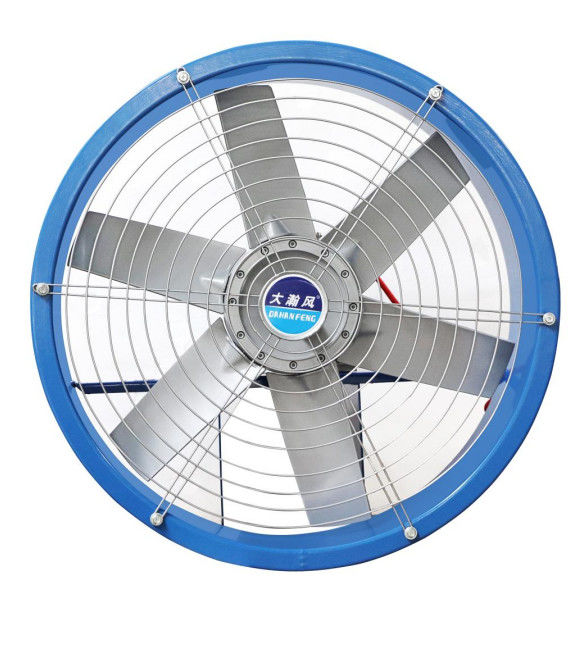

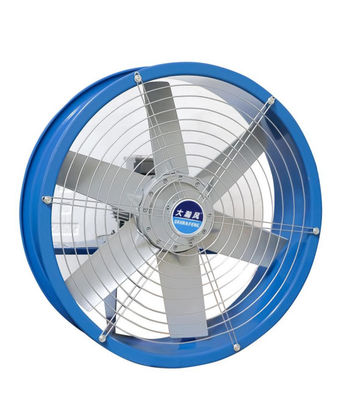

High Temperature Axial Fan For Drying Kiln Ventilation System

Brand Name:	Dahanfeng
Model Number:	GSF-6#B
MOQ:	200 pcs
Price:	US$168/pcs/Factory price
Payment Terms:	T/T , D/A, D/P, L/C
Supply Ability:	300~500 pcs in 10 working days

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

3C, CE, RoHs,IS09001,ISO14001,CEP

Full Pressure:

270 ~ 310 Pa

Mounting Type:

Wall Mount

Input Power:

2.2 KW

Type:

Axial Fan

Noise:

78 DBs

Quantity Of Fan Blade:

6 Pcs

Speed:

1450 Rpm

Voltage:

380 V

Circulating Air Range:

10000~16000 M³/h

Material:

Curved Die-cast Aluminium Alloy

Inner Diameter Of Fan Blade:

710 Mm(D1)

Diameter Of Hole:

670 Mm(D2)

Out Diameter Of Fan Blade:

770 Mm(D3)

Installation Dimentions:

71*300 Mm(H*L) 6*7 Mm(n-d1)

Packaging Details:

Stretch membrane wrapping

Highlight:

Kiln High Temperature Axial Fan

High Temperature Ventilation Axial Fan

Kiln Ventilation Axial Fan

Product Description

High Temperature and High Humidity Axial Flow Fan for Drying Kiln Ventilation System

A high temperature axial fan is a specialized ventilation device designed to handle high-temperature environments.

In terms of construction, it is typically made of materials that can withstand extreme heat, such as heat-resistant alloys or special ceramics. The fan blades are carefully engineered to be durable and efficient even at elevated temperatures.

High Temperature Axial Fan For Drying Kiln Ventilation System 0

Functionally, the high temperature axial fan is designed to move large volumes of air. It works by drawing in air from one side and propelling it in an axial direction. This is especially useful in industrial processes where high temperatures are generated, such as in steel mills, foundries, and chemical plants.

Features:

1)High temperature resistant
2)Powerful
3)Stable wind pressure
4)Low noise technology
5)Easy maintenance
